OBC

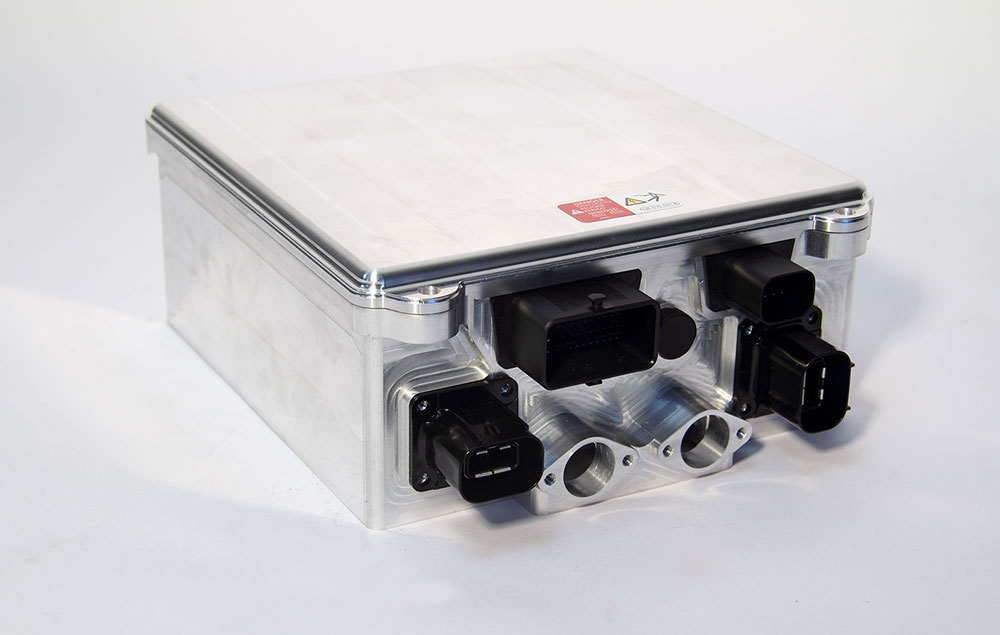

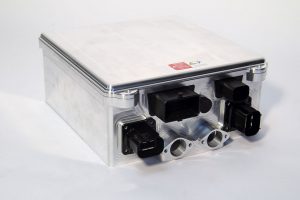

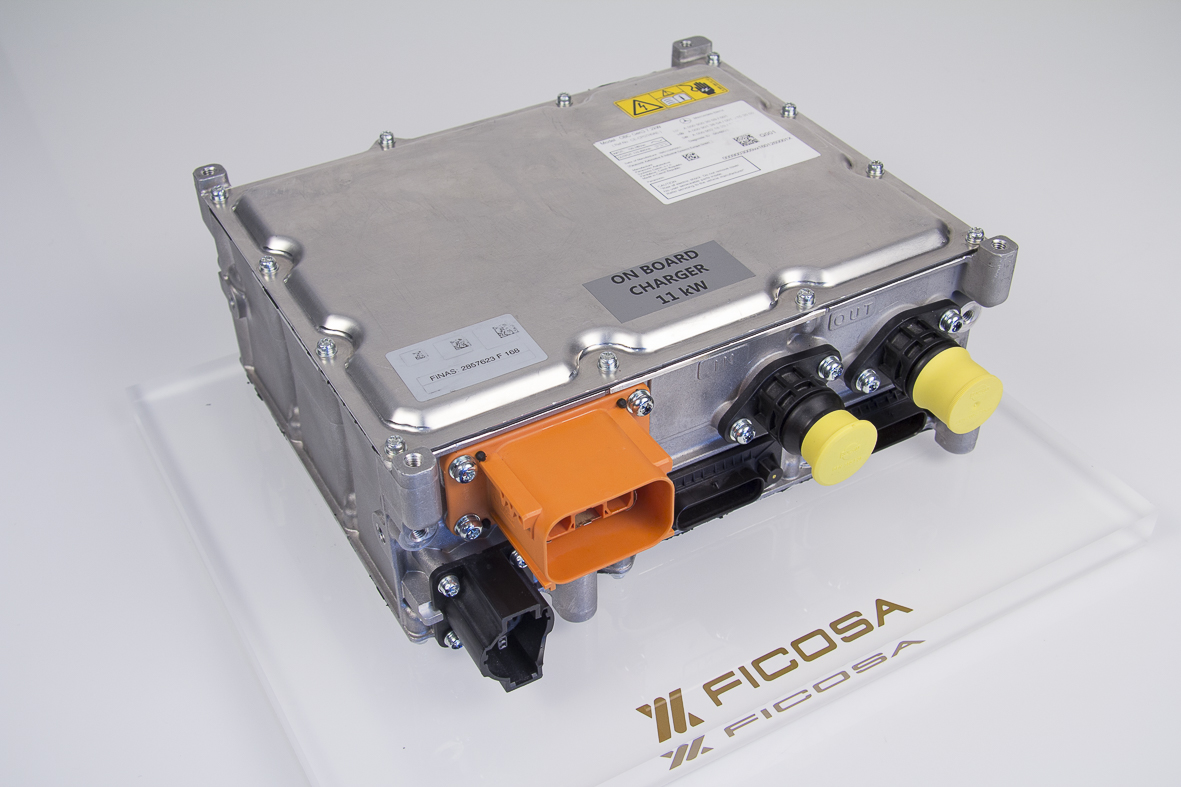

On Board Charger

AC/DC On Board Charger (Power from 3.6 kW up to 22 kW)

Main specifications:

  • High efficiency up to 96%
  • Power Factor Control (0.99)
  • Software Architecture based on AUTOSAR
  • Safety ISO26262 compliant, up to ASIL-C
  • Including DC charge management
  • Universal interfaces (Poximity, Pilot, CHAdeMO, PLC)
  • Vehicle functions for Flap_Lock and Coupler Lock.

Mechanical construction:

  • Reduced Dimensions: 191 x 197 x 100  (mm)
  • Low Volume: 4,3 liters, Light Weight: 4,5 kg
  • Integrated cooling circuit
  • Robust concept, Reliable fixation

Integration:

  • Semiconductors integrated in Power modules
  • Improved thermal performance
  • Improved electrical/EMI performance



DC BOX for DC CHARGE (Power up to 250 kW)

Main Specifications:

  • Maximum voltage/Current  = 500V / 500A
  • Over current protection included (Short circuit, Overload)
  • Current  and Voltage measurement accuracy = 1%
  • Disconnection with contactors
  • Software Architecture based on AUTOSAR
  • Safety ISO26262 compliant, up to ASIL-C
  • Including DC charge management
  • Universal interfaces (Proximity, Pilot, CHAdeMO, PLC)
  • Universal Inlet Couplers (CHAdeMO, CCS Combo, China)

Mechanical  construction:

  • Reduced Dimensions: 200 x 280 x 150  (mm)
  • Low Volume: 8,4 liters, Light Weight: 4 kg
  • Integrated cooling circuit (as option)
  • Robust concept, Reliable fixation
